Small Integrated Grinding Machine for End Mill and Drill Bits


Say goodbye to the hassle of complicated sharpening processes and enjoy the convenience and reliability of our end mill and drill sharpeners. With its user-friendly design, this machine ensures that sharpening your tools is a seamless and efficient task, allowing you to focus on your work without the frustration of dull or poorly sharpened tools.
Our sharpeners handle a variety of end mill and drill size sizes, providing the versatility and adaptability to meet your specific sharpening needs. Whether you’re a seasoned professional or a DIY enthusiast, our knife sharpeners have you covered, ensuring your tools are always in top condition for top-notch performance.
End mill
1.Applicable to (234-flute) tungsten carbide and high-speed steel end mill.
2.Grind rear inclined angle, blade edge and front inclined angle.
3.For different end mill grinding, no need to change grinding wheet.
4.Easy to handle,Finish grinding in 1 minute.
5.Mill cutting edge can be adjusted sultable for materials to be processed.
Drill
1.Can grind standard twist drill of direct shank and cone shank
2.Applicable to tungsten carbide and high-speed steel drills re-sharpening
3.Length of drill to be grinded has no llmitatlon.

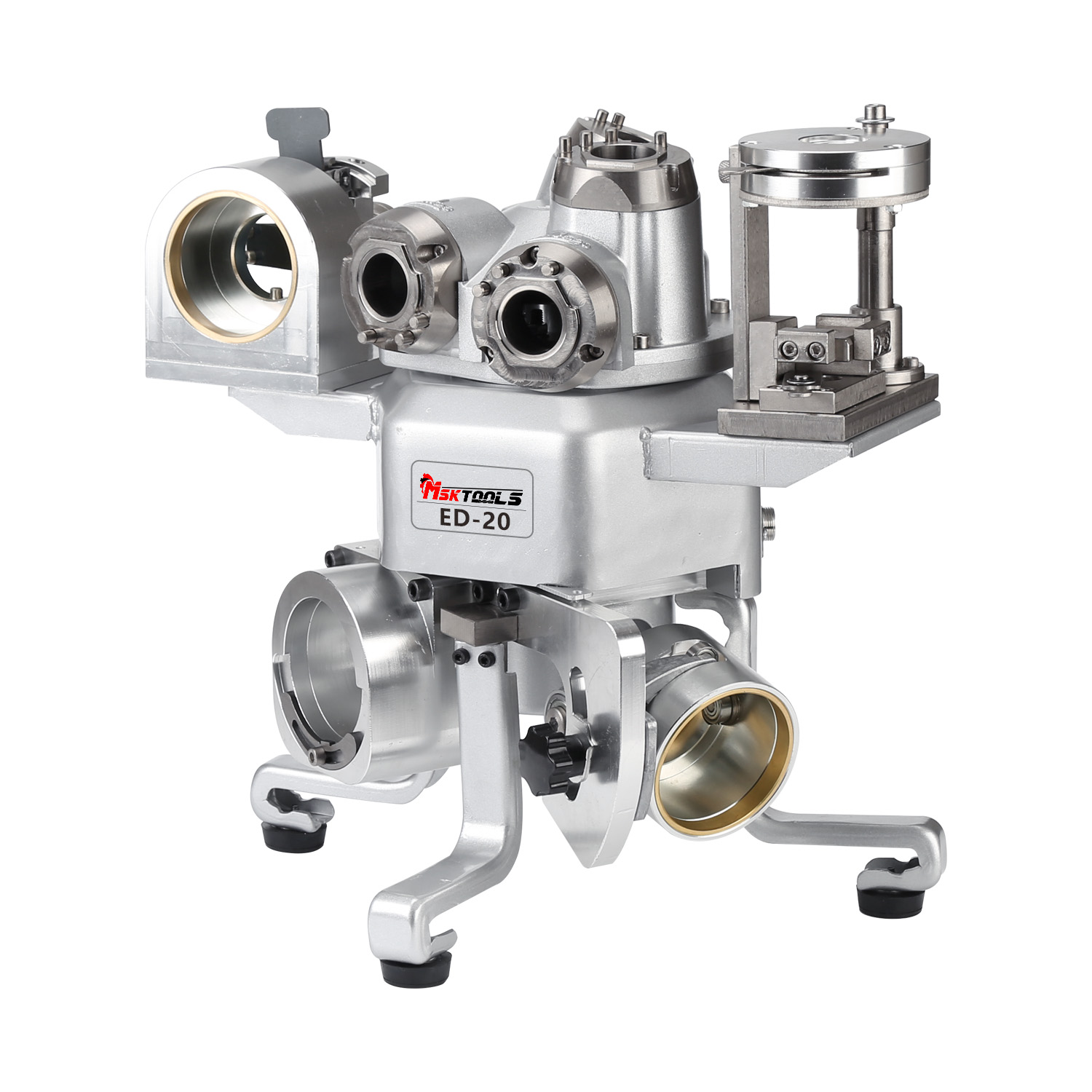

Model | ED-20(with fine grinding) |
Applicable diameters | End mill φ4-φ20mm |
Applicable flutes | 2flutes,3flutes,4flutes |
Axial angles | Secondary clearance angle 6°,Primary rellef angle 20°,End gash angle 30° |
Grinding wheel | E20SDC(or CBN) |
Power | 220V±10%AC |
Grinding scope of the apex angle | 90°-140° |
Rated speed | 6000rpm |
Outer dimensions | 370*350*380(mm) |
Weight/Power | 26KG/600W |
Normal accessories | Collet*8pcs, 2 flutes holder*8pcs, 3 flutes holder*8pcs,4 flutes holder*8pcs, case*1pcs, Hexagon wrench *2pcs,controller*1pcs, Chuck group*1 Group |
