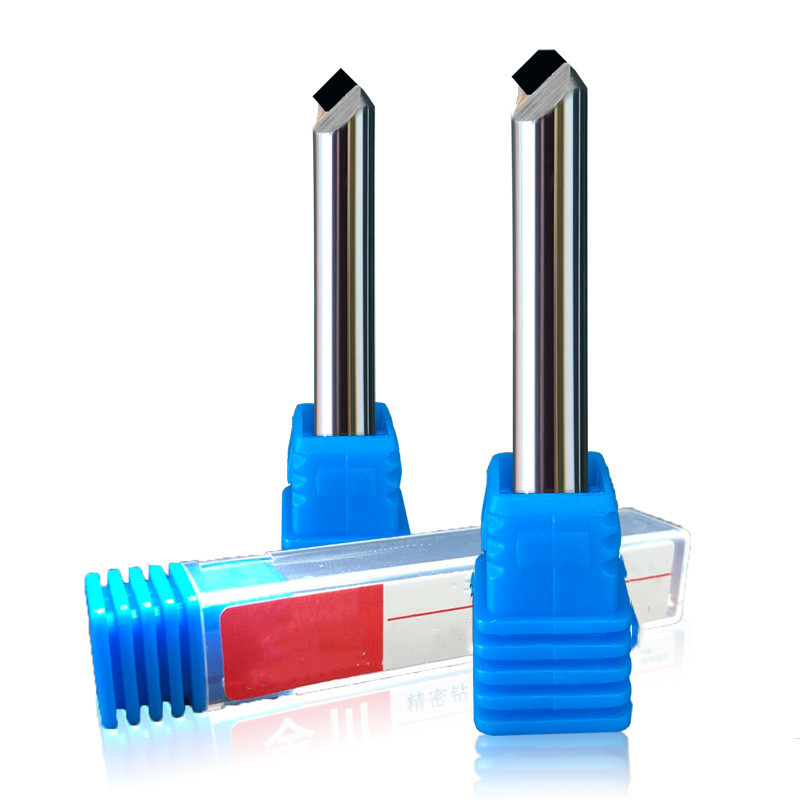

Synthetic polycrystalline diamond (PCD) is a multi-body material made by polymerizing fine diamond powder with solvent under high temperature and high pressure. Its hardness is lower than that of natural diamond (about HV6000). Compared with cemented carbide tools, PCD tools have a hardness 3 higher than that of natural diamonds. -4 times; 50-100 times higher wear resistance and life; cutting speed can be increased by 5-20 times; roughness can reach Ra0.05um, brightness is inferior to natural diamond knives
Precautions for use:
1. Diamond tools are brittle and very sharp. They are prone to chipping when impacted. Therefore, use them under balanced and vibration-free working conditions as much as possible; at the same time, the rigidity of the workpiece and the tool and the rigidity of the entire system should be improved as much as possible. Increase its vibration damping capacity. It is advisable for the cutting amount to exceed o.05MM below.
2. Higher cutting speed can reduce the cutting force, while low-speed cutting will increase the cutting force, thereby accelerating tool chipping failure. Therefore, the cutting speed should not be too low when machining with diamond tools.
3. Try not to make the diamond tool contact with the workpiece or other hard objects in a static state, so as not to damage the cutting edge of the tool, and do not stop the machine when the tool does not leave the workpiece during cutting. /4. The blade of diamond knives is easy to damage. When the blade is not working, use a rubber or plastic cap to protect the blade and place it in a separate knife box for storage. Before each use, wipe the blade part clean with alcohol before working.
5. The detection of diamond tools should adopt non-contact measurement methods such as optical instruments. When checking and installing, use optical instruments to detect the installation angle as much as possible. When testing, use copper gaskets or plastic products between the tool and the testing instrument to avoid The cutting edge is damaged by bumps, which increases the use time of the cutting tool.
