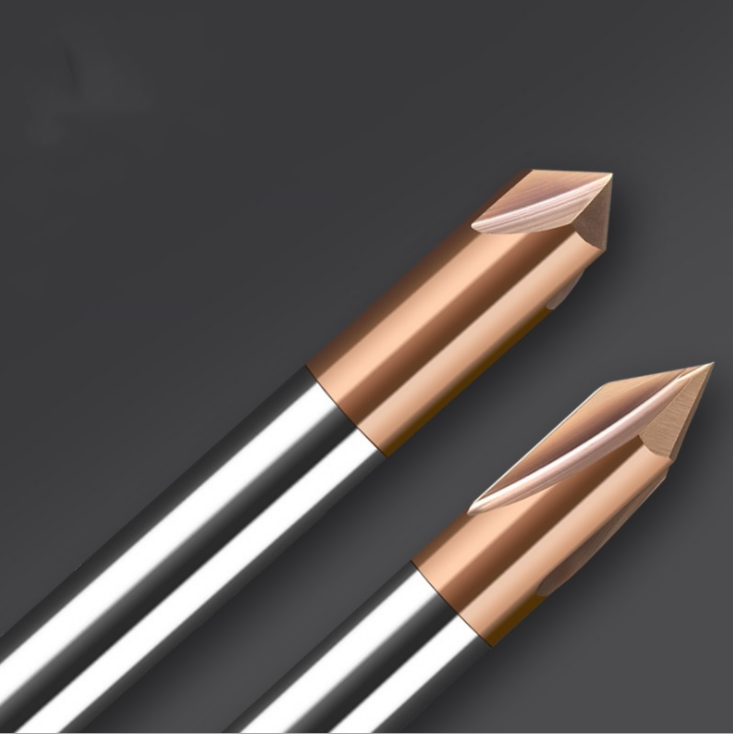

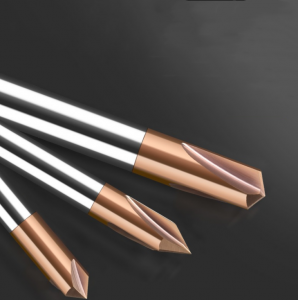

Carbide V Groove Chamfer Drill Bits For Aluminum & Steel
Solid Carbide chamfering tools are an excellent choice for cutting chamfers and deburring machined edges in manual and CNC applications. 3 Flute design and also be used to spot drill holes in soft materials.
The Router Bits Are Super for Carving V Groove, CNC Lettering And Signs, And Chamfering End.
3 Flutes Designed Chamfer Bits to make Cutting More Efficiently And Clean Surface.
V Groove Router Bits Can Be Used in CNC, X carve, 3D carving, Router Hand And Table Mount, And Most Brand Handheld Routers with 1/4 Inch Collets.
| Type | Flat surface |
| Flutes | 3 |
| Workpiece Material | Cast iron, carbon steel, copper, stainless steel, alloy steel, modulation steel, spring steel (steel), aluminum, aluminum alloy, magnesium alloy, zinc alloy (aluminum), etc |
| Processing way | Plane/side/groove/cut-in (Z-direction feed) |
| Brand | MSK |
| Coating | No |
| Flute Diameter D | Flute Length L1 | Shank Diameter d | Length L |
| 1 | 3 | 5 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2 | 6 | 4 | 50 |
| 2.5 | 7 | 4 | 50 |
| 3 | 9 | 6 | 50 |
| 4 | 12 | 6 | 50 |
| 5 | 15 | 6 | 50 |
| 6 | 18 | 6 | 60 |
| 8 | 20 | 8 | 60 |
| 10 | 30 | 10 | 75 |
| 12 | 32 | 12 | 75 |
| 16 | 45 | 16 | 100 |
| 20 | 45 | 20 | 100 |
Use:
Aviation Manufacturing
Machine Production
Car manufacturer
Mold making
Electrical Manufacturing
Lathe processing
